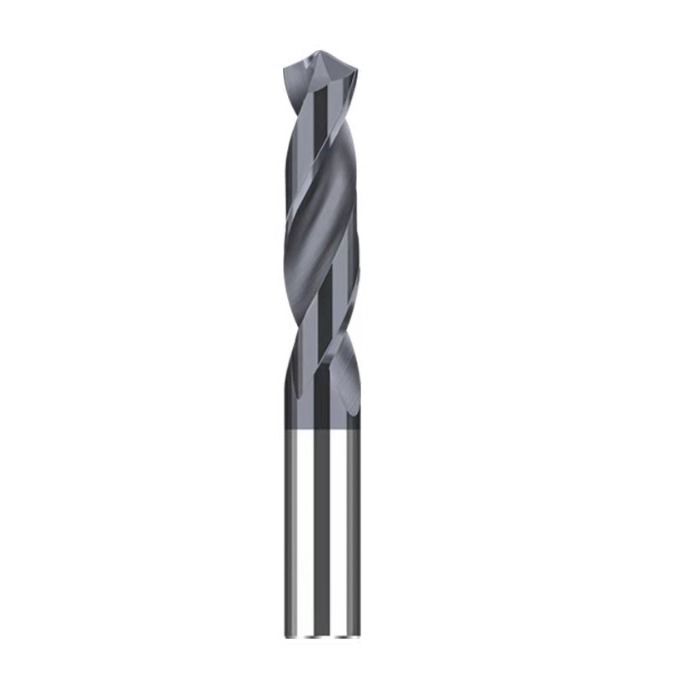

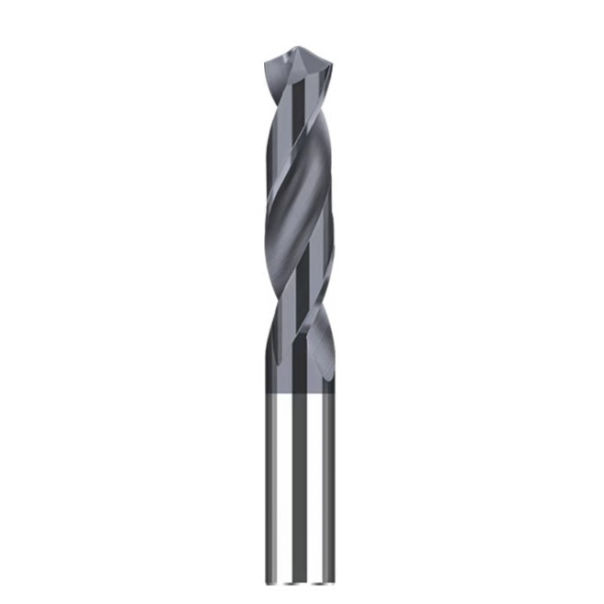

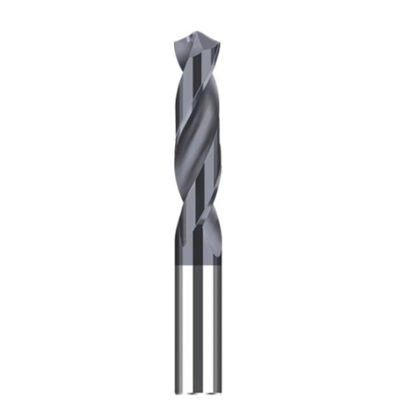

HRC45 3D Solid Carbide Drill Bit Metal 6mm Boren van gehard staal met carbide

HRC45 3D Solid Carbide Drill Bit Metal 6mm Boren van gehard staal met carbide

Merknaam: BABOS
Modelnummer: BBSTD3D45060
MOQ: 10 stuks
Prijs: Onderhandelbaar
Betalingsvoorwaarden: L/C, D/A, D/P, T/T, Western Union
Toeleveringsvermogen: 10,000pcs per maand
Gedetailleerde informatie
Plaats van herkomst:
China
Snijddiameter:
6 mm
Snijdlengte:
28 mm
Staandiameter:
6 mm
Algemene duur:
66 mm
Materiaal:
Solid Carbide
Type coating/afwerking:
AITiN
Type machine:
CNC-machines
Kwaliteit van de coating:
YG10X met een gehalte aan 10% Co en een korrelgrootte van 0,8 mm
Toepassing:
centering en tegenzonken op CNC-machines
Tolerantie:
0.000mm~-0.050mm
Aanpassen:
Beschikbaar
Aantal fluitten:
2
Verpakking Details:
Plastiekdoos
Markeren:

HRC45-boorstuk met vast koolstofcarbide

,

3D solide carbide boorstuk

,

6 mm boorgehard staal met carbide

Productomschrijving

HRC45 3D vaste carbide twist boor voor metaal 6 mm*28 mm*6 mm met 66 mm overale lengte

Productbeschrijving:

HRC45 3D Solid Carbide Twist boor is een hoogwaardige boorgereedschap dat bekend staat om zijn veelzijdigheid en precisie en gebruikt voor grijs gietijzer, ductiel ijzer, roestvrij staal, legeringsstaal en andere verwerking van gemeenschappelijke materialen.



Functies:

  • Productnaam: HRC45 3D Solid Carbide Twist Drill
  • Materiaal:WolfraamCarbide
  • Toepassing/gebruik: metaalboren
  • Toepasselijke materialen:Grijs gietijzer, ductiel ijzer, roestvrij staal,legeringsstaal en andere veel voorkomende materialen


Technische parameters:

Productmateriaal Wolfraamcarbide
Fluitnummer 2
Type coating/afwerking Aitine
Tolerantie 0,000 mm ~ -0,050 mm
Machinetype CNC -machines
Aanpassen Beschikbaar
OEM Beschikbaar
Monsterorder Geaccepteerd







Productspecificaties:





HRC45 3D Solid Carbide Drill Bit Metal 6mm Boren van gehard staal met carbide 0



HRC45 Solid Carbide Twist Drill (3D)
HRC 45 °: grondstof: gebruik YG10X met 10% CO -gehalte en 0,8um korrelgrootte ;
Standaardlengte Coating: Aitin
HRC 45 °
Standaardlengte Coating: Aitin
HRC 45 °
Cut Dia. Snijd lengte. Schacht dia. Overallengte. Fluiten Bestelnr. Cut Dia. Snijd lengte. Schacht dia. Overallengte. Fluiten Bestelnr.
D (mm) LC (mm) D (mm) L(mm) D(mm) LC(mm) D(mm) L(mm)
1 12 3 42 2 BBSTD3D45010 10.1 51 11 95 2 BBSTD3D45101
1.1 2 BBSTD3D45011 10.2 2 BBSTD3D45102
1.2 2 BBSTD3D45012 10.3 2 BBSTD3D45103
1.3 2 BBSTD3D45013 10.4 2 BBSTD3D45104
1.4 2 BBSTD3D45014 10.5 2 BBSTD3D45105
1.5 2 BBSTD3D45015 10.6 2 BBSTD3D45106
1.6 2 BBSTD3D45016 10.7 2 BBSTD3D45107
1.7 2 BBSTD3D45017 10.8 2 BBSTD3D45108
1.8 2 BBSTD3D45018 10.9 2 BBSTD3D45109
1.9 2 BBSTD3D45019 11 2 BBSTD3D45110
2 2 BBSTD3D45020 11.1 54 12 102 2 BBSTD3D45111
2.1 14 3 50 2 BBSTD3D45021 11.2 2 BBSTD3D45112
2.2 2 BBSTD3D45022 11.3 2 BBSTD3D45113
2.3 2 BBSTD3D45023 11.4 2 BBSTD3D45114
2.4 2 BBSTD3D45024 11.5 2 BBSTD3D45115
2.5 2 BBSTD3D45025 11.6 2 BBSTD3D45116
2.6 2 BBSTD3D45026 11.7 2 BBSTD3D45117
2.7 2 BBSTD3D45027 11.8 2 BBSTD3D45118
2.8 2 BBSTD3D45028 11.9 2 BBSTD3D45119
2.9 2 BBSTD3D45029 12 2 BBSTD3D45120
3 2 BBSTD3D45030 12.1 57 13 102 2 BBSTD3D45121
3.1 20 4 60 2 BBSTD3D45031 12.2 2 BBSTD3D45122
3.2 2 BBSTD3D45032 12.3 2 BBSTD3D45123
3.3 2 BBSTD3D45033 12.4 2 BBSTD3D45124
3.4 2 BBSTD3D45034 12.5 2 BBSTD3D45125
3.5 2 BBSTD3D45035 12.6 2 BBSTD3D45126
3.6 2 BBSTD3D45036 12.7 2 BBSTD3D45127
3.7 2 BBSTD3D45037 12.8 2 BBSTD3D45128
3.8 2 BBSTD3D45038 12.9 2 BBSTD3D45129
3.9 2 BBSTD3D45039 13 2 BBSTD3D45130
4 2 BBSTD3D45040 13.1 60 14 107 2 BBSTD3D45131
4.1 24 5 62 2 BBSTD3D45041 13.2 2 BBSTD3D45132
4.2 2 BBSTD3D45042 13.3 2 BBSTD3D45133
4.3 2 BBSTD3D45043 13.4 2 BBSTD3D45134
4.4 2 BBSTD3D45044 13.5 2 BBSTD3D45135
4.5 2 BBSTD3D45045 13.6 2 BBSTD3D45136
4.6 2 BBSTD3D45046 13.7 2 BBSTD3D45137
4.7 2 BBSTD3D45047 13.8 2 BBSTD3D45138
4.8 2 BBSTD3D45048 13.9 2 BBSTD3D45139
4.9 2 BBSTD3D45049 14 2 BBSTD3D45140
5 2 BBSTD3D45050 14.1 62 15 111 2 BBSTD3D45141
5.1 28 6 66 2 BBSTD3D45051 14.2 2 BBSTD3D45142
5.2 2 BBSTD3D45052 14.3 2 BBSTD3D45143
5.3 2 BBSTD3D45053 14.4 2 BBSTD3D45144
5.4 2 BBSTD3D45054 14.5 2 BBSTD3D45145
5.5 2 BBSTD3D45055 14.6 2 BBSTD3D45146
5.6 2 BBSTD3D45056 14.7 2 BBSTD3D45147
5.7 2 BBSTD3D45057 14.8 2 BBSTD3D45148
5.8 2 BBSTD3D45058 14.9 2 BBSTD3D45149
5.9 2 BBSTD3D45059 15 2 BBSTD3D45150
6 2 BBSTD3D45060 15.1 64 16 115 2 BBSTD3D45151
6.1 34 7 74 2 BBSTD3D45061 15.2 2 BBSTD3D45152
6.2 2 BBSTD3D45062 15.3 2 BBSTD3D45153
6.3 2 BBSTD3D45063 15.4 2 BBSTD3D45154
6.4 2 BBSTD3D45064 15.5 2 BBSTD3D45155
6.5 2 BBSTD3D45065 15.6 2 BBSTD3D45156
6.6 2 BBSTD3D45066 15.7 2 BBSTD3D45157
6.7 2 BBSTD3D45067 15.8 2 BBSTD3D45158
6.8 2 BBSTD3D45068 15.9 2 BBSTD3D45159
6.9 2 BBSTD3D45069 16 2 BBSTD3D45160
7 2 BBSTD3D45070 16.1 66 17 119 2 BBSTD3D45161
7.1 40 8 79 2 BBSTD3D45071 16.2 2 BBSTD3D45162
7.2 2 BBSTD3D45072 16.3 2 BBSTD3D45163
7.3 2 BBSTD3D45073 16.4 2 BBSTD3D45164
7.4 2 BBSTD3D45074 16.5 2 BBSTD3D45165
7.5 2 BBSTD3D45075 16.6 2 BBSTD3D45166
7.6 2 BBSTD3D45076 16.7 2 BBSTD3D45167
7.7 2 BBSTD3D45077 16.8 2 BBSTD3D45168
7.8 2 BBSTD3D45078 16.9 2 BBSTD3D45169
7.9 2 BBSTD3D45079 17 2 BBSTD3D45170
8 2 BBSTD3D45080 17.1 66 18 123 2 BBSTD3D45171
8.1 43 9 84 2 BBSTD3D45081 17.2 2 BBSTD3D45172
8.2 2 BBSTD3D45082 17.3 2 BBSTD3D45173
8.3 2 BBSTD3D45083 17.4 2 BBSTD3D45174
8.4 2 BBSTD3D45084 17.5 2 BBSTD3D45175
8.5 2 BBSTD3D45085 17.6 2 BBSTD3D45176
8.6 2 BBSTD3D45086 17.7 2 BBSTD3D45177
8.7 2 BBSTD3D45087 17.8 2 BBSTD3D45178
8.8 2 BBSTD3D45088 17.9 2 BBSTD3D45179
8.9 2 BBSTD3D45089 18 2 BBSTD3D45180
9 2 BBSTD3D45090 18.1 70 19 127 2 BBSTD3D45181
9.1 47 10 89 2 BBSTD3D45091 18.2 2 BBSTD3D45182
9.2 2 BBSTD3D45092 18.5 2 BBSTD3D45185
9.3 2 BBSTD3D45093 19 2 BBSTD3D45190
9.4 2 BBSTD3D45094
9.5 2 BBSTD3D45095 19.1 70 20 131 2 BBSTD3D45191
9.6 2 BBSTD3D45096 19.2 BBSTD3D45192
9.7 2 BBSTD3D45097 19.5 BBSTD3D45195
9.8 2 BBSTD3D45098 19.7 BBSTD3D45197
9.9 2 BBSTD3D45099 20 BBSTD3D45120
10 2 BBSTD3D45100
